产品名称：CL20（MKT） 轴向金属化聚酯薄膜电容器
产品编号：CL20（MKT）
产品概述：
▪ 金属化聚酯薄膜卷绕而成，引线轴向引出，外裹高温胶带，两端环氧灌封，外型为扁圆形或圆柱形，低噪音。
▪ 广泛用于音频及电源等低噪音藕合电路。

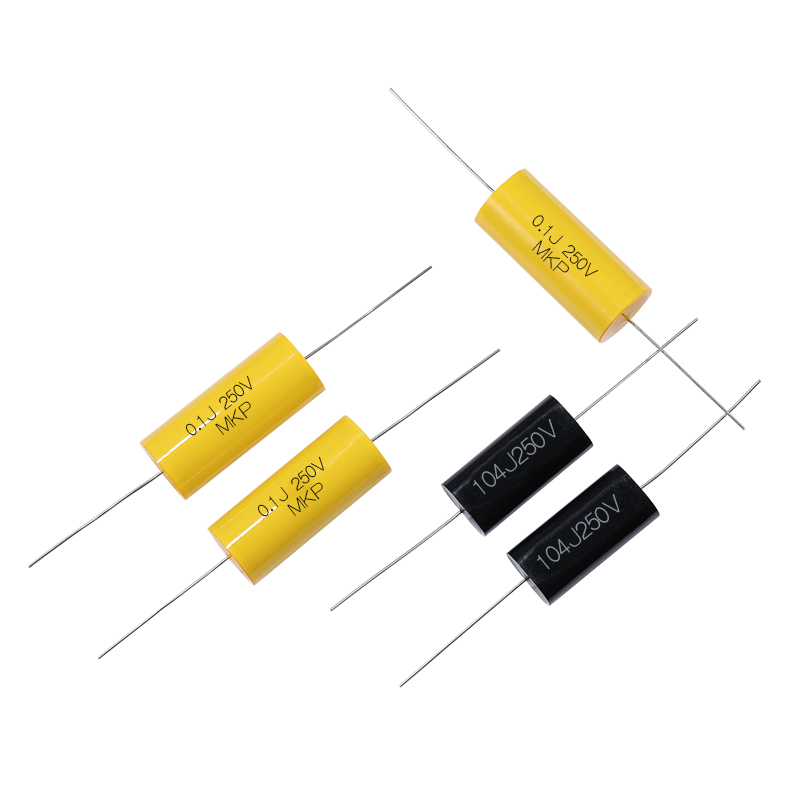

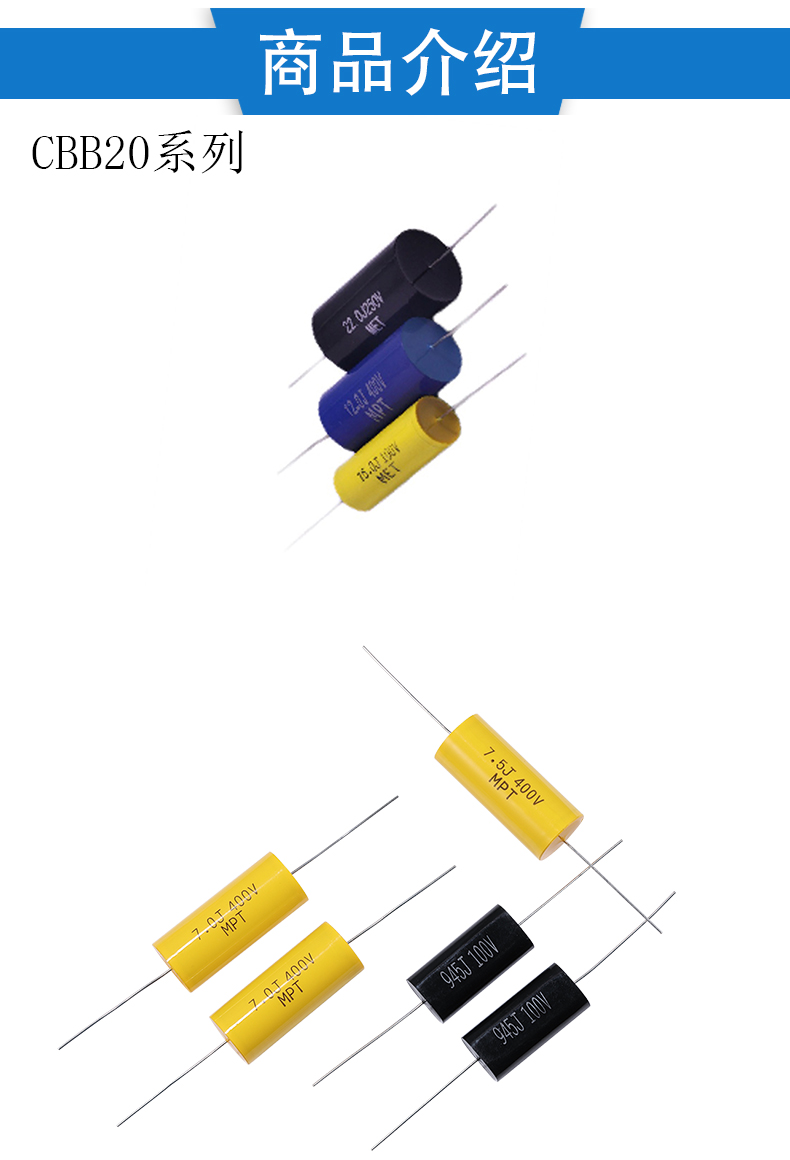

ZZEC –CBB20（MKP）金属化聚酯丙烯薄膜电容器（轴向）：
该系列具有价格优势，体积超小，颜色有黄，黑两种颜色可选，金属化聚丙烯膜卷绕而成，引线轴向引出，外裹高温胶带，两端阻燃性液体灌封，外型为圆型或圆柱型，噪音低，损耗小，内部温升小，适用于各种交直流脉冲及大电流电路。如通讯设备、收音机、电视机、电源，仪器仪表等产品中。
ZZEC –CL23（MEC）超小型盒式金属化聚酯薄膜电容器规范和外形尺寸图
气候类别 Climatic category | 40/100/21 |
|
|
额定电压 Rated Voltage | 100 250V,400V,630V 1.6倍 | ||
电容量范围 Capacitance range | 0.001~6.8 μF | ||
耐电压 Voltage Proof | 1.6 UR | ||
绝缘电阻 Insulation resistance | ≥3 000MΩ,CR≤0.33μF | ||
≥1 00000S,CR＞0.33μF | |||
（20℃,1min） | |||
损耗角正切 Dissipation Factor | ≤ 0.0008(1KHZ 23℃) |
ZZEC –CBB20（MKP）金属化聚酯丙烯薄膜电容器（轴向）：
CAP | 100VDC | 250VDC | 400VDC | |||||||||||
CODE | μF | P | W | T | H | P | W | T | H | P | W | T | H | |
103 | 0.01 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 7.5 | 10.0 10.0 | 4.5 4.5 | 8.5 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | |
10.0 | 13.0 | 4.5 | 8.5 | |||||||||||
153 | 0.015 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 7.5 | 10.0 10.0 | 4.5 4.5 | 8.5 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | |
10.0 | 13.0 | 4.5 | 8.5 | |||||||||||
223 | 0.022 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | |
333 | 0.033 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | 10.0 | 13.0 | 4.5 | 8.5 | |
473 | 0.047 | 7.5 7.5 | 10.0 10.0 | 4.5 4.5 | 8.5 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 10.0 | 10.0 13.0 | 4.5 4.5 | 8.5 8.5 | |
7.5 | 10.0 | 4.5 | 8.5 | |||||||||||
683 | 0.068 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | |
10.0 | 13.0 | 4.5 | 8.5 | 10.0 | 13.0 | 4.5 | 8.5 | 10.0 | 13.0 | 4.5 | 8.5 | |||
104 | 0.1 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 4.8 | 8.0 | 7.5 10.0 | 10.0 13.0 | 5.0 5.0 | 9.0 9.0 | |
10.0 | 13.0 | 4.5 | 8.5 | 10.0 | 13.0 | 5.5 | 15.0 | |||||||
154 | 0.15 | 7.5 10.0 | 10.0 13.0 | 4.5 4.5 | 8.5 8.5 | 7.5 10.0 | 10.0 13.0 | 4.5 4.5 | 8.5 8.5 | 7.5 10.0 | 10.0 13.0 | 6.0 5.0 | 10.0 9.0 | |
224 | 0.22 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 4.5 | 8.5 | 7.5 | 10.0 | 6.0 | 10.0 | |
10.0 | 13.0 | 5.0 | 9.0 | 10.0 | 13.0 | 5.0 | 9.0 | 10.0 | 13.0 | 6.0 | 10.0 | |||
334 |
0.33 |
7.5 |
10.0 |
5.0 |
9.0 | 15.0 7.5 | 18.0 10.0 | 5.0 6.0 | 8.0 11.0 | 15.0 7.5 | 18.0 10.0 | 5.5 8.0 | 9.5 13.0 | |
10.0 | 13.0 | 5.0 | 9.0 | 10.0 | 12.0 | 5.5 | 10.0 | 10.0 | 13.0 | 7.0 | 12.0 | |||
474 |
0.47 | 15.0 7.5 | 18.0 10.0 | 4.5 5.0 | 8.5 9.0 | 15.0 | 18.0 | 4.5 | 8.5 | 15.0
| 18.0
| 5.5
| 9.5
| |
7.5 | 10.0 | 7.0 | 12.0 | |||||||||||
10.0 | 13.0 | 5.0 | 9.5 | 10.0 | 13.0 | 6.0 | 11.0 | 10.0 | 13.0 | 8.0 | 13.5 | |||
684 |
0.68 | 15.0
| 18.0
| 5.0
| 9.5
| 15.0
| 18.0
| 5.0
| 10.0
| 15.0 20.0 | 18.0 23.0 | 6.0 5.5 | 11.0 10.0 |
7.5 | 10.0 | 5.0 | 9.0 | 7.5 | 10.0 | 7.5 | 13.0 | ||||||
10.0 | 13.0 | 5.0 | 9.0 | 10.0 | 13.0 | 7.0 | 12.5 | 15 | 18.0 | 7.0 | 13.5 | ||
105 |
1.0
| 15.0 7.5 | 18.0 10.0 | 8.5 5.0 | 16.0 9.5 | 20.0 7.5 | 23.0 10.0 | 9.8 9.0 | 17.8 14.0 | 20.0
15.0 20.0 | 23.0
18.0 23.0 | 6.0
8.5 7.0 | 11.5
15.0 13.0 |
10.0 15.0 | 13.0 23.0 | 5.0 8.9 | 9.5 14.0 | 10.0 15.0 | 13.0 18.0 | 8.5 6.5 | 14.0 12.0 | ||||||
20.0 | 23.0 | 5.5 | 10.5 | 20.0 | 23.0 | 5.5 | 10.5 | ||||||
155 |
1.5 |
7.5 |
10.0 |
5.5 |
11.0 | 22.5
| 26.0
| 5.5
| 11.0
| 22.5
| 26.0
| 6.5
| 13.0
|
10.0 15.0 | 13.0 18.0 | 6.0 5.5 | 11.0 10.5 | 10.0 15.0 | 13.0 18.0 | 8.5 7.5 | 16.0 14.5 |
15.0 |
18.0 |
9.0 |
16.0 | ||
225
|
2.2
| 20.0 22.5
7.5 10.0 | 23.0 26.0
10.0 13.0 | 5.5 7.0
6.5 6.5 | 10.0 12.0
12.0 12.0 | 20.0 22.5 27.5
10.0 15.0 | 23.0 26.0 31.0
13.0 18.0 | 6.0 7.0 7.0
10.0 7.0 | 13.0 12.0 14.0
17.0 15.0 | 20.0 22.5 27.5
15.0 | 23.0 26.0 31.0
18.0 | 8.5 8.0 7.0
11.0 | 15.5 14.5 14.0
19.0 |
15.0 | 18.0 | 6.5 | 14.0 | ||||||||||
20.0 22.5 27.5 | 23.0 26.0 31.0 | 6.5 6.0 7.0 | 12.0 11.0 14.0 | 20.0 22.5 27.5 | 23.0 26.0 31.0 | 10.5 8.0 7.0 | 14.0 15.0 14.0 | 20.0 22.5 27.5 | 23.0 26.0 31.0 | 9.0 9.5 9.0 | 17.5 18.0 16.0 | ||
335 | 3.3 | 7.5 10.0 15.0 | 10.0 13.0 18.0 | 7.5 7.0 7.5 | 13.5 13.0 15.0 |
20.0 |
23.0 |
8.5 |
17.5 | ||||
20.0 | 23.0 | 7.0 | 14.0 | ||||||||||
22.5 27.5
| 26.0 31.0
| 6.5 8.0 | 14.0 17.0 | 22.5 27.5 | 26.0 31.0 | 9.0 8.0 | 18.0 17.0
|
27.5 31.0 |
31.0 35.0 |
10.0 9.5 |
19.0 18.5 | ||
475 |
4.7 | 10.0 15.0 | 13.0 18.0 | 8.0 9.0 | 15.0 16.0 | ||||||||
20.0 | 23.0 | 8.5 | 15.5 | ||||||||||
685 |
6.8 | 22.5 | 26.0 | 8.0 | 15.0 | 22.5 27.5 31.0
22.5 27.5 | 26.0 31.0 35.0
26.0 31.0 | 11.0 9.5 9.0
13.0 10.0 | 20.0 19.0 18.0
23.0 21.0 | 27.5 31.0
| 31.0 35.0
| 12.0 11.0
| 23.0 21.0
|
27.5 31.0 10.0 15.0 20.0 22.5 27.5 | 31.0 35.0 13.0 18.0 23.0 26.0 31.0 | 7.0 9.0 9.5 11.0 9.5 9.0 8.0 | 14.0 18.0 17.0 19.0 18.5 18.0 17.0 | ||||||||||
31.0 | 35.0 | 7.5 | 16.5 | 31.0 | 35.0 | 10.0 | 21.0 | 31.0 | 35.0 | 12.0 | 23.0 |
