产品展示
-

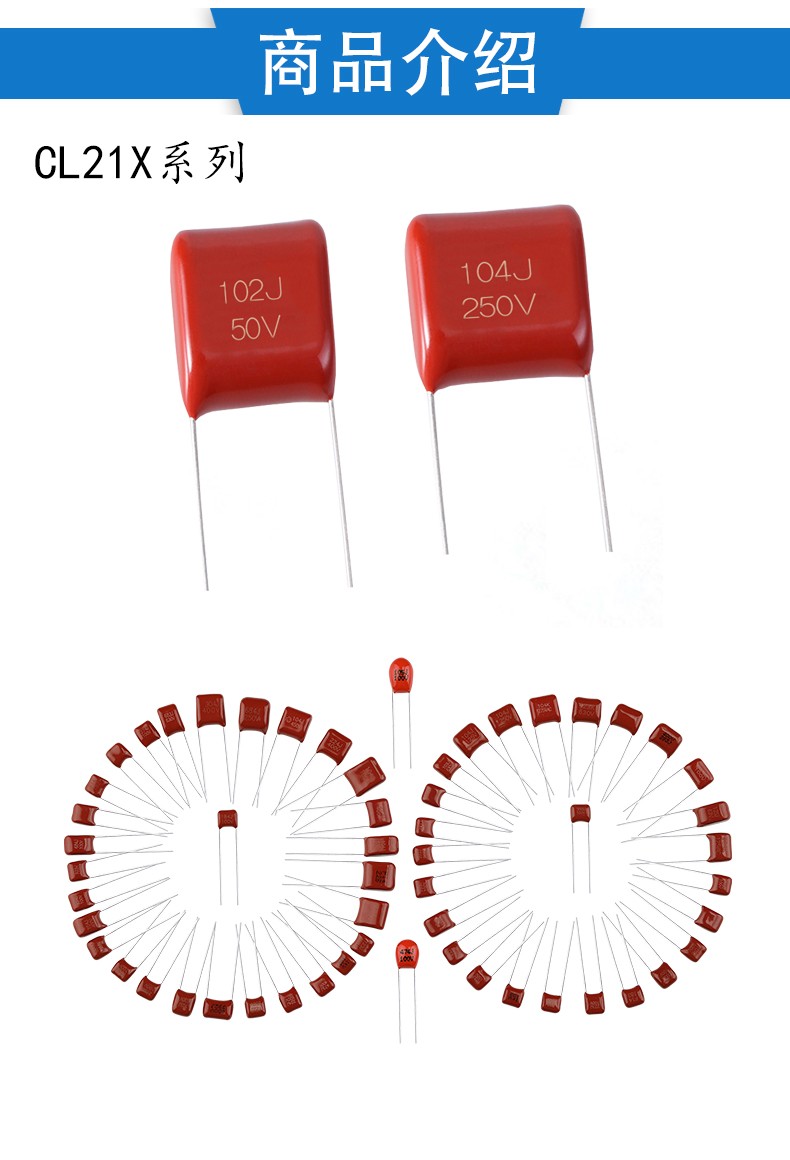

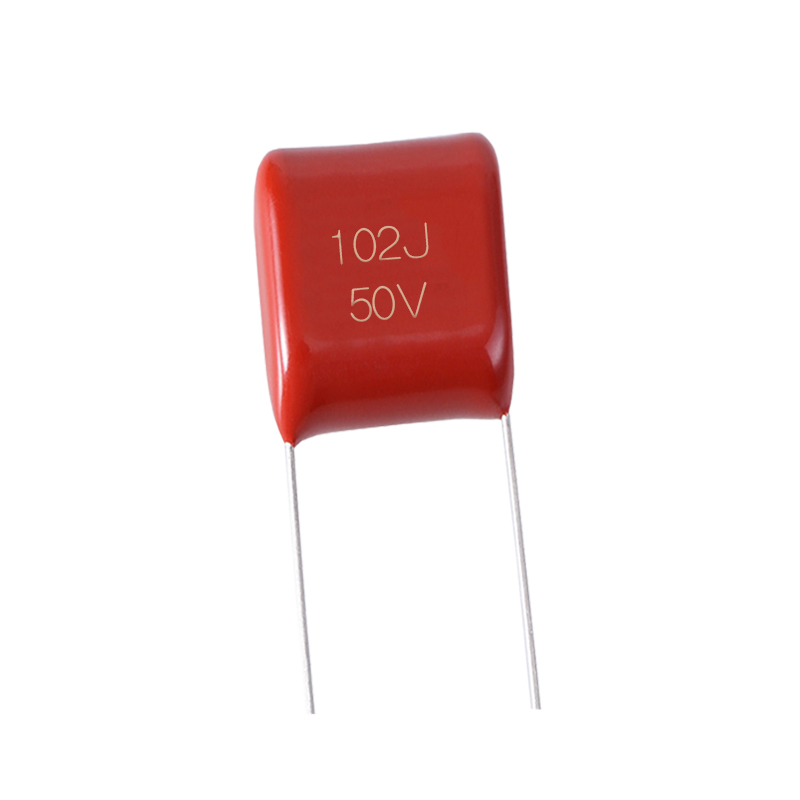

产品名称：CL21X-顶部印字 金属化聚酯电容器
产品编号：CL21X（MSF）
产品概述：
▪本产品体积超小，自愈性好，耐高温，可部分小容量可用串联金属化膜生产，耐压高，高温蜡内封，阻燃性环氧粉末包封，防潮性能稳定，低噪音，外观一致性好，可顶部印字。
▪适用于直流及低脉冲场合。用于功放，彩电，通讯，电源，LED驱动等要求小尺寸的电路。
ZZEC –CL21X（MSF）超小型金属化聚脂薄膜电容器：
金属化聚酯薄膜卷绕而成,容量范围宽，体积小，耐高温，重量轻，自愈性好，部分小容量可以用串联金属化膜生产，耐压高，使用高温蜡内封，阻燃环氧粉末包封，防潮性能稳定，低噪音，适用于隔直流，旁路和耦等场合，广泛用于滤波低脉冲电路。广泛应用于直流和低脉冲场合，对放大器、电视、通信、电源、LED驱动器等要求小尺寸的电路。
ZZEC –CL21X（MSF）超小型金属化聚脂薄膜电容器特性
l 金属化聚酯薄膜高温蜡封，绝缘性能好
l 电容尺寸超小，范围宽，体积小，重量轻
l 耐高压、耐高温蜡封、阻燃环氧粉末涂
l 防潮阻燃
l 低损耗因数。
l 良好的自愈效果，稳定性好，可靠性高。
ZZEC –CL21X（MSF）超小型金属化聚脂薄膜电容器规范和外形尺寸图
气候类别 Climatic category | 40/100/21 |
|
|
额定电压 Rated Voltage | 63/100 250V,400V,630V
| ||
电容量范围 Capacitance range | 0.001~6.8 μF | ||
耐电压 Voltage Proof | 1.6 UR | ||
绝缘电阻 Insulation resistance | ≥3 000MΩ,CR≤0.33μF | ||
≥1 000S,CR＞0.33μF | |||
（20℃,1min） | |||
损耗角正切 Dissipation Factor | ≤ 0.008(1KHZ 23℃) |
ZZEC –CL21X（MSF）超小型金属化聚脂薄膜电容型号及尺寸表-(特殊尺寸可依客户需求定制）ZZEC –CL21X（MSF）P: 5mm尺寸表
CAP （μF） | 50/63/100VDC | 250 VDC | 400VDC | 630VDC | ||||||||||||||||
W | H | T | P | D | W | H | T | P | D | W | H | T | P | D | W | H | T | P | D | |
+/-1mm | +/-1mm | +/-1mm | +/-1mm | |||||||||||||||||
0.001 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 |
0.0012 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 |
0.0015 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 |
0.0018 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 |
0.0022 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 |
0.0027 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 |
0.0033 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 |
0.0039 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 |
0.0047 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 |
0.0056 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 |
0.0068 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 |
0.0082 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.5 | 4.5 | 5 | 0.5 |
0.01 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 8 | 4.8 | 5 | 0.5 |
0.012 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 8.5 | 5 | 5 | 0.5 |
0.015 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 8.8 | 5.2 | 5 | 0.5 |
0.018 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 9 | 5.3 | 5 | 0.5 |
0.022 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 9.3 | 5.5 | 5 | 0.5 |
0.027 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 9.5 | 5.6 | 5 | 0.5 |
0.033 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 9.8 | 5.8 | 5 | 0.5 |
0.039 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | |||||
0.047 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.2 | 4 | 5 | 0.5 | |||||
0.056 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.5 | 4.5 | 5 | 0.5 | 7.2 | 8.5 | 4.5 | 5 | 0.5 | |||||
0.068 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 7.5 | 4.5 | 5 | 0.5 | 7.2 | 9 | 5 | 5 | 0.5 | |||||
0.082 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 8.5 | 4.5 | 5 | 0.5 | 7.2 | 9 | 5 | 5 | 0.5 | |||||
0.1 | 7.2 | 7.2 | 4 | 5 | 0.5 | 7.2 | 8.5 | 4.5 | 5 | 0.5 | 7.2 | 10 | 5.5 | 5 | 0.5 | |||||
0.12 | 7.2 | 7.5 | 4.5 | 5 | 0.5 | 7.2 | 9 | 5 | 5 | 0.5 | 7.2 | 10 | 5.5 | 5 | 0.5 | |||||
0.15 | 7.2 | 7.5 | 4.5 | 5 | 0.5 | 7.2 | 9 | 5 | 5 | 0.5 | 7.2 | 11 | 6 | 5 | 0.5 | |||||
0.18 | 7.2 | 7.5 | 4.5 | 5 | 0.5 | 7.2 | 10 | 5.5 | 5 | 0.5 | 7.2 | 11.5 | 6.5 | 5 | 0.5 | |||||
0.22 | 7.2 | 7.5 | 4.5 | 5 | 0.5 | 7.2 | 10 | 5.5 | 5 | 0.5 | 7.2 | 12 | 7 | 5 | 0.5 | |||||
0.27 | 7.2 | 7.5 | 4.5 | 5 | 0.5 | 7.2 | 11 | 6 | 5 | 0.5 | ||||||||||
0.33 | 7.2 | 8.5 | 4.5 | 5 | 0.5 | 7.2 | 12 | 7 | 5 | 0.5 | ||||||||||
CAP （μF） | 50/63/100VDC | 250 VDC | 400VDC | 630VDC | ||||||||||||||||
W | H | T | P | D | W | H | T | P | D | W | H | T | P | D | W | H | T | P | D | |
+/-1mm | +/-1mm | +/-1mm | +/-1mm | |||||||||||||||||
0.39 | 7.2 | 8. 5 | 4.5 | 5 | 0.5 | 7.2 | 12 | 7 | 5 | 0.5 | ||||||||||
0.47 | 7.2 | 9 | 5 | 5 | 0.5 | |||||||||||||||
0.56 | 7.2 | 9 | 5 | 5 | 0.5 | |||||||||||||||
0.68 | 7.2 | 10. 0 | 5 | 5 | 0.5 | |||||||||||||||
0.82 | 7.2 | 11. 5 | 5.2 | 5 | 0.5 | |||||||||||||||
1 | 7.2 | 12. 0 | 5.6 | 5 | 0.5 | |||||||||||||||
1.5 | 7.2 | 12.5 | 6.5 | 5 | 0.5 | |||||||||||||||
2.2 | 7.2 | 12.5 | 7 | 5 | 0.5 | |||||||||||||||
3.3 | 9.5 | 13.5 | 8 | 7.5 | 0.5 | |||||||||||||||
4.7 | 12 | 14.5 | 8 | 10 | 0.6 | |||||||||||||||
5.6 | 12 | 15.5 | 8.5 | 10 | 0.6 | |||||||||||||||
ZZEC –CL21X（MSF） (P: 7.5mm尺寸表)
CAP （μF） | 100VDC | 250VDC | 400VDC | ||||||||||
P | W | T | H | P | W | T | H | P | W | T | H | ||
103 | 0.01 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 4.5 | 8.5 |
153 | 0.015 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 4.5 | 8.5 |
223 | 0.022 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 4.5 | 8.5 |
333 | 0.033 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 4.5 | 8.5 | ||||
473 | 0.047 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 4.5 | 8.5 |
683 | 0.068 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 4.5 | 8.5 |
104 | 0.1 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 4.8 | 8 | 7.5 | 10 | 5 | 9 |
154 | 0.15 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 6 | 10 |
224 | 0.22 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 4.5 | 8.5 | 7.5 | 10 | 6 | 10 |
334 | 0.33 | 7.5 | 10 | 5 | 9 | 7.5 | 10 | 6 | 11 | 7.5 | 10 | 8 | 13 |
474 | 0.47 | 7.5 | 10 | 5 | 9 | 7.5 | 10 | 7 | 12 | ||||
684 | 0.68 | 7.5 | 10 | 5 | 9 | 7.5 | 10 | 7.5 | 13 | ||||
105 | 1 | 7.5 | 10 | 5 | 9.5 | 7.5 | 10 | 9 | 14 | ||||
155 | 1.5 | 7.5 | 10 | 5.5 | 11 | ||||||||
225 | 2.2 | 7.5 | 10 | 6.5 | 12 | ||||||||
335 | 3.3 | 7.5 | 10 | 7.5 | 13.5 |
